Triflex BTS-P Waterproofing for residential balcony
Key Facts
Location: Singapore
System: Triflex BTS-P
Completion: March 2023
Area: 20 m²
Authorised Contractor: Lefong Pte Ltd
Waterproofing Solution for Marshall Residence, Singapore
In March 2023, the Marshall Residence in Singapore faced significant leakage issues with their terrace roof, causing water to seep into the tenant’s apartment below. Triflex Singapore was called upon to provide a durable and non-disruptive waterproofing solution.
The Challenge
The terrace roof of the Marshall Residence displayed several defects, particularly at the interfacing walls and door-windows, where the previous cementitious waterproofing layer lacked proper reinforcement. This allowed water to penetrate and cause damage to the apartment below. The challenge was to implement a solution that could be installed without disrupting the existing structure, minimize tenant inconvenience, and provide long-term protection against leaks.
The project began with a comprehensive coring test to evaluate the existing waterproofing layers, followed by adhesion tests to determine the most effective solution.
The Solution
Working in collaboration with Lefong Pte Ltd, an authorized Triflex contractor, the team determined that the Triflex BTS-P system was the optimal solution. This system was chosen for several key reasons:
Strong Adhesion: The BTS-P system adhered directly to the existing tiling, avoiding the need to remove or disturb the current structure.
Lightweight Nature: The lightweight properties of BTS-P eliminated the need for structural recalculations or additional engineering work.
Rapid-Curing: The fast-curing properties of Triflex BTS-P enabled quick installation, ensuring minimal disruption to the residents.
Long-Lasting Durability: The system, reinforced with fleece, provided superior waterproofing and flexibility, essential for handling the terrace’s structural movements.

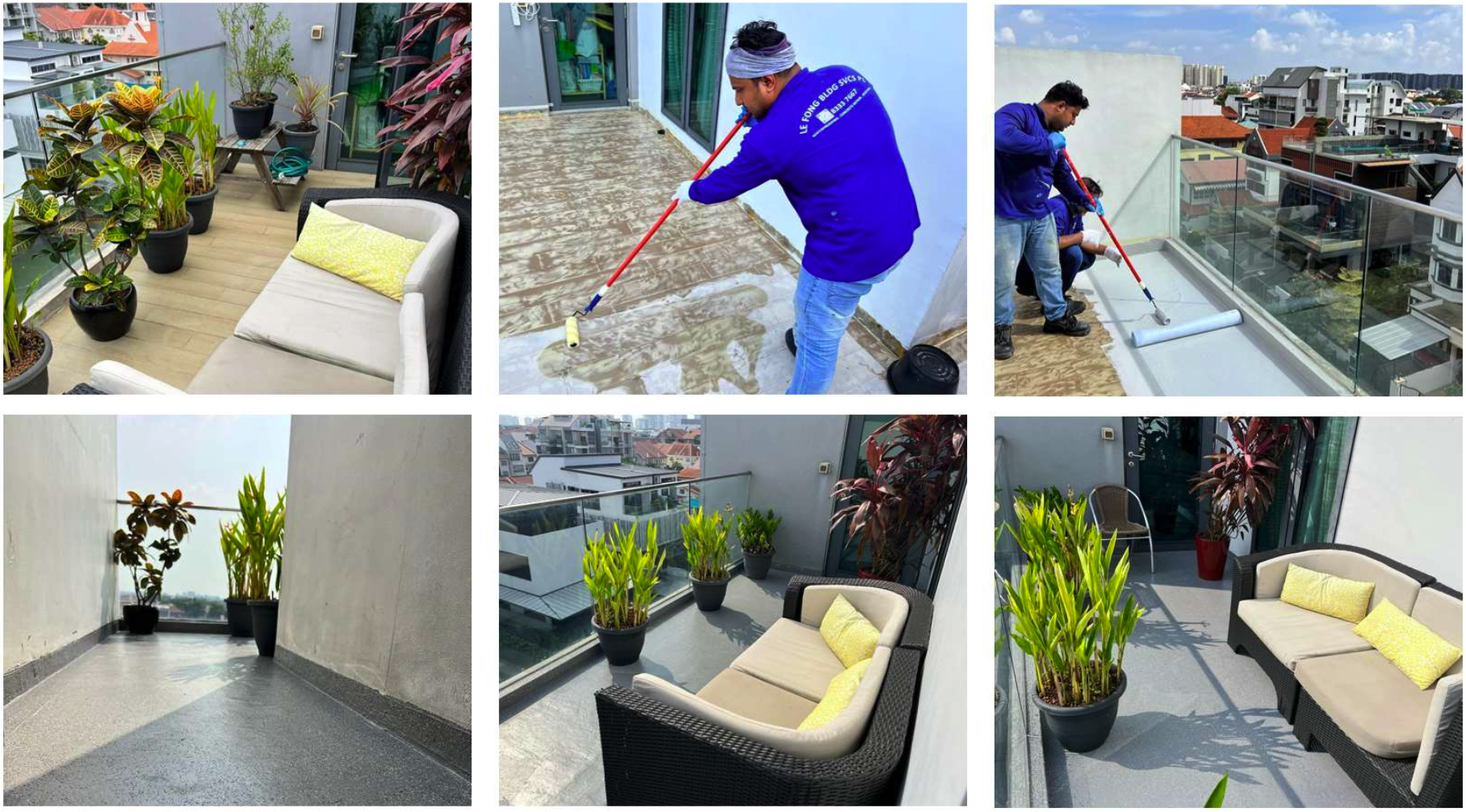

The installation process began with thorough preparation of the terrace surface to ensure optimal adhesion of the BTS-P system. Triflex’s team, together with Lefong Pte Ltd, applied the liquid-applied waterproofing solution across the entire terrace, including the intricate details around the interfacing walls and door-windows.
The system’s ability to adhere seamlessly to the existing tiling made the installation process efficient, without the need for structural alterations. The rapid-curing nature of the system ensured that the project could be completed in a short time frame, minimizing any inconvenience to the tenants.

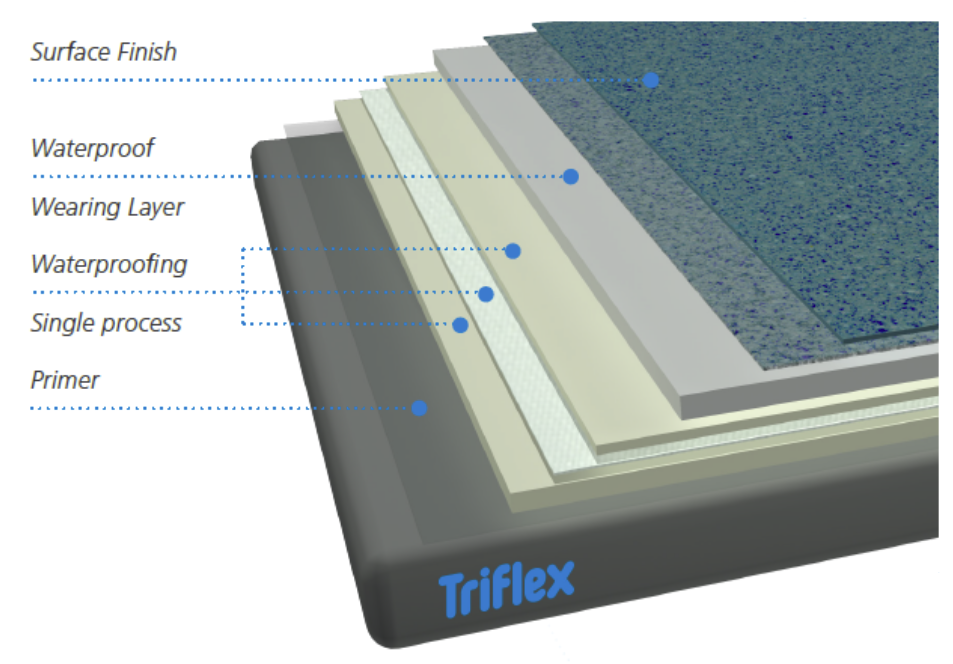

System Overview
Totally cold applied, with no risk from hot works
Compatible with virtually all roof substrates - including asphalt
Suitable for refurbishment and new build projects
Abrasion and impact resistant
Anti-skid / anti-slip
Exceptionally rapid curing
Fully bonded - excellent adhesion to the substrate and inter-layers
Hydrolysis (standing and ponding water) resistant

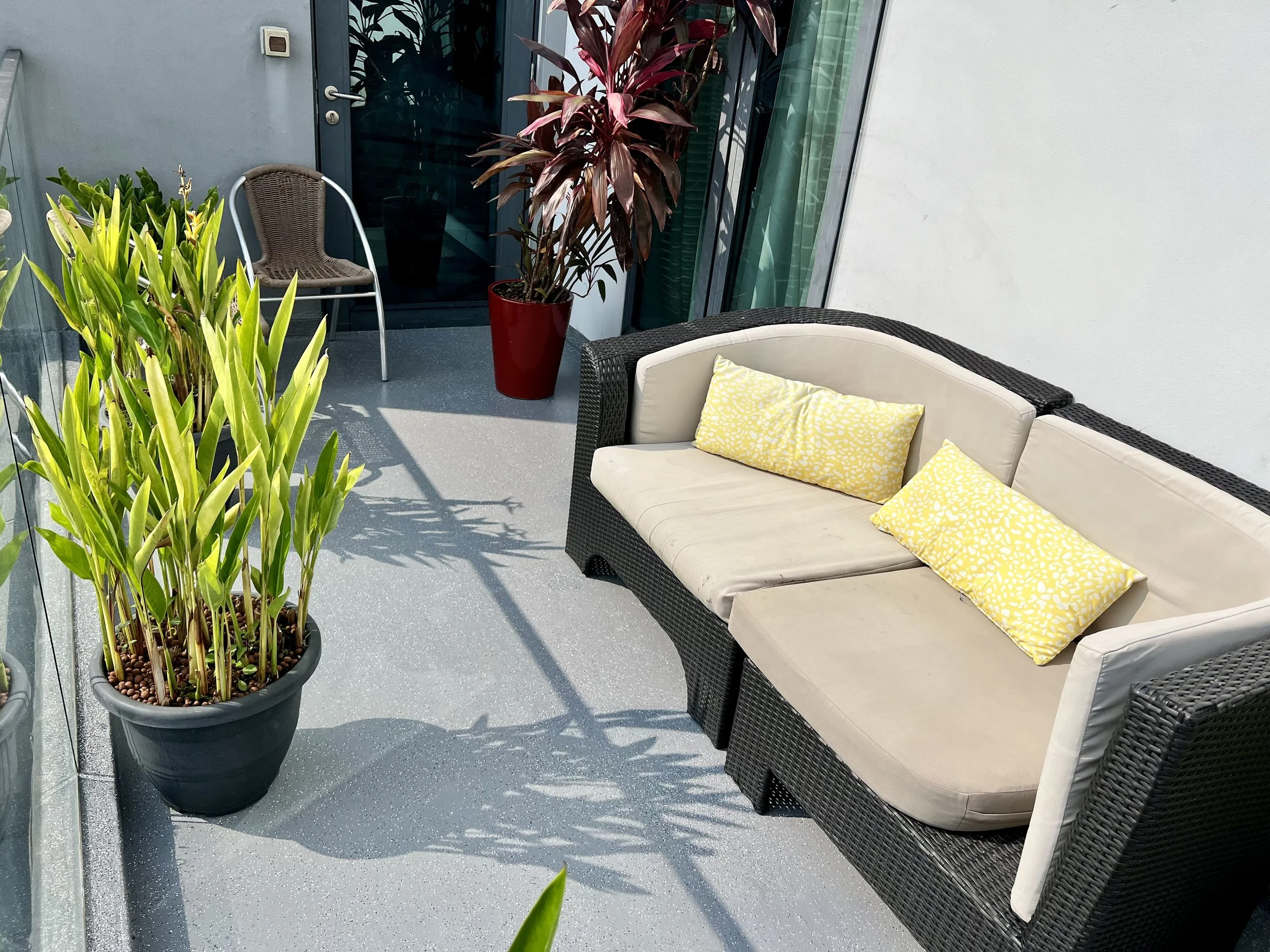

Results
The implementation of the Triflex BTS-P system successfully resolved the leakage issues at Marshall Residence. The terrace roof is now fully protected against water ingress, with the added benefit of long-term durability. The lightweight and flexible nature of the system ensures that the structure can expand and contract without compromising the waterproofing layer.
This project is a testament to Triflex’s expertise in delivering high-quality, efficient, and non-disruptive waterproofing solutions, tailored to the specific needs of each project.
About Triflex
Triflex is the leading In Asia specialist in liquid waterproofing solutions PMMA. Our high-quality systems provide reliable and lasting waterproofing for roofs, balconies, and parking decks. We are a family owned and operated company that provides individual solutions worldwide. From our production facilities based in Minden, Germany, we have been researching and developing solutions designed to protect and repair our clients' structures for more than 40 years.
In Singapore we pride ourselves on providing our clients with tailored solutions and exceptional levels of service & support throughout all stages of their project. From conducting in-depth site surveys, to our comprehensive testing and off-site and on- site support we ensure your project is completed on time and to the highest standards. All Triflex solutions are certified to the relevant UK & European standards and are accompanied with long term warranties to provide peace of mind.
