Triflex SmartTec Waterproofing for roof terrace
Key Facts
Location: Singapore
System: Triflex SmartTec
Completion: November 2022
Area: 60 m²
Authorised Contractor: Lee Fong Pte Ltd

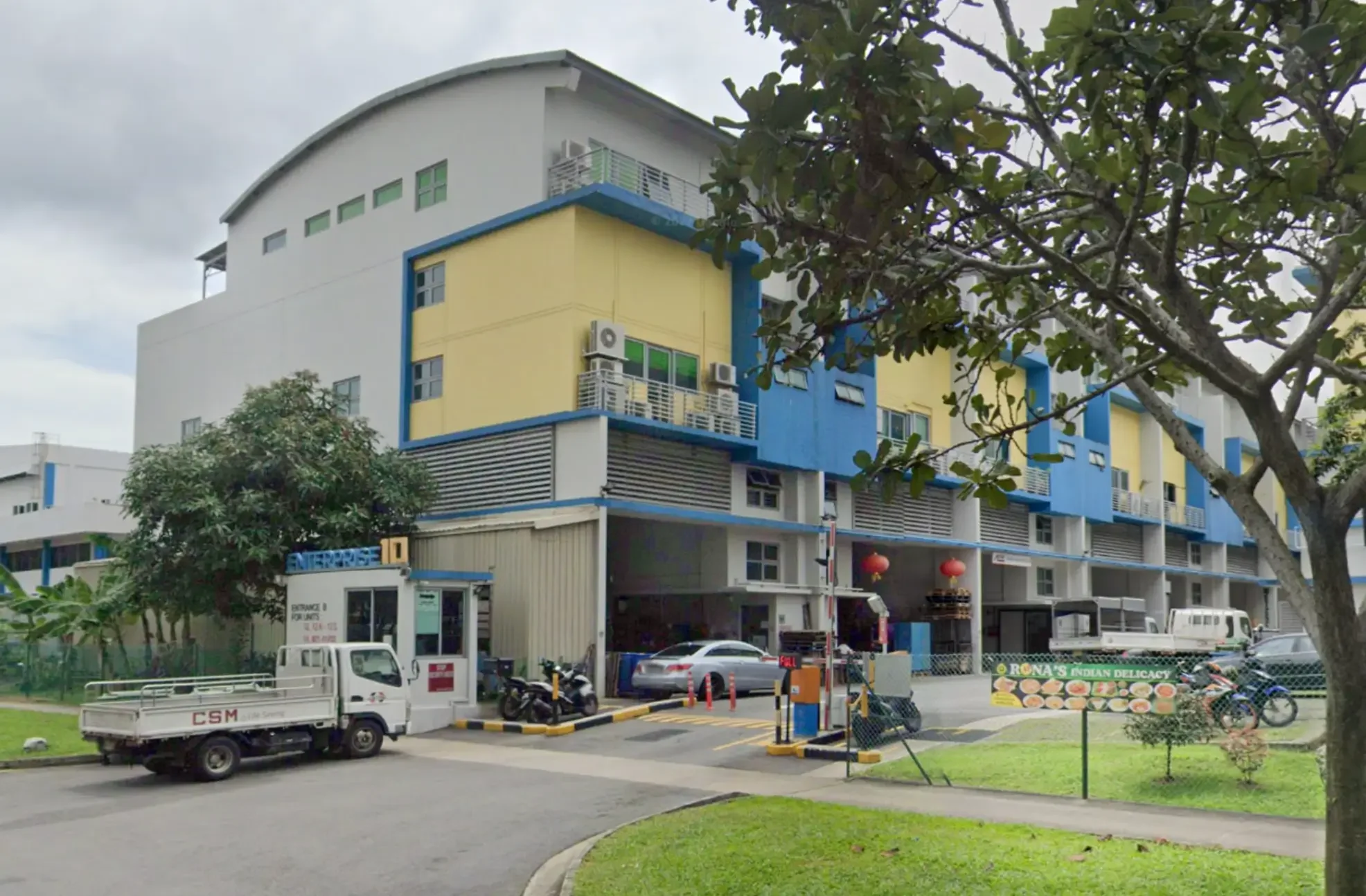

Waterproofing Solution for 16 Entreprise Roof Terraces in Singapore
In November 2022, Triflex Singapore was engaged to address a significant waterproofing challenge at the 16 Entreprise Terrace Roof in Singapore. The terrace roof, previously suffering from widespread leaks, required an innovative and durable solution. With the rainy season in full swing and moisture levels at a critical high, Triflex’s advanced SmartTec system was chosen to provide the necessary waterproofing protection.
The Challenge
The terrace roof at 16 Entreprise was plagued by extensive leaking due to the absence of reinforcement in the existing cementitious waterproofing layer. This issue was compounded by the harsh weather conditions typical of Singapore’s rainy season. The initial task was to conduct a thorough inspection of the existing structure. This involved coring tests to examine the different layers of the old waterproofing systems, followed by moisture and adhesion tests to determine the extent of the damage and the required solution.
The Solution
After an in-depth on-site survey, Triflex, in collaboration with its authorized contractor, Leefong Pte Ltd, identified the Triflex SmartTec system as the optimal solution for this project. The Triflex SmartTec system was selected due to its exceptional moisture resistance—an essential feature given the challenging weather conditions. The system’s ability to function effectively even with a minimum of 30% moisture and its role as a vapour barrier made it the ideal choice.

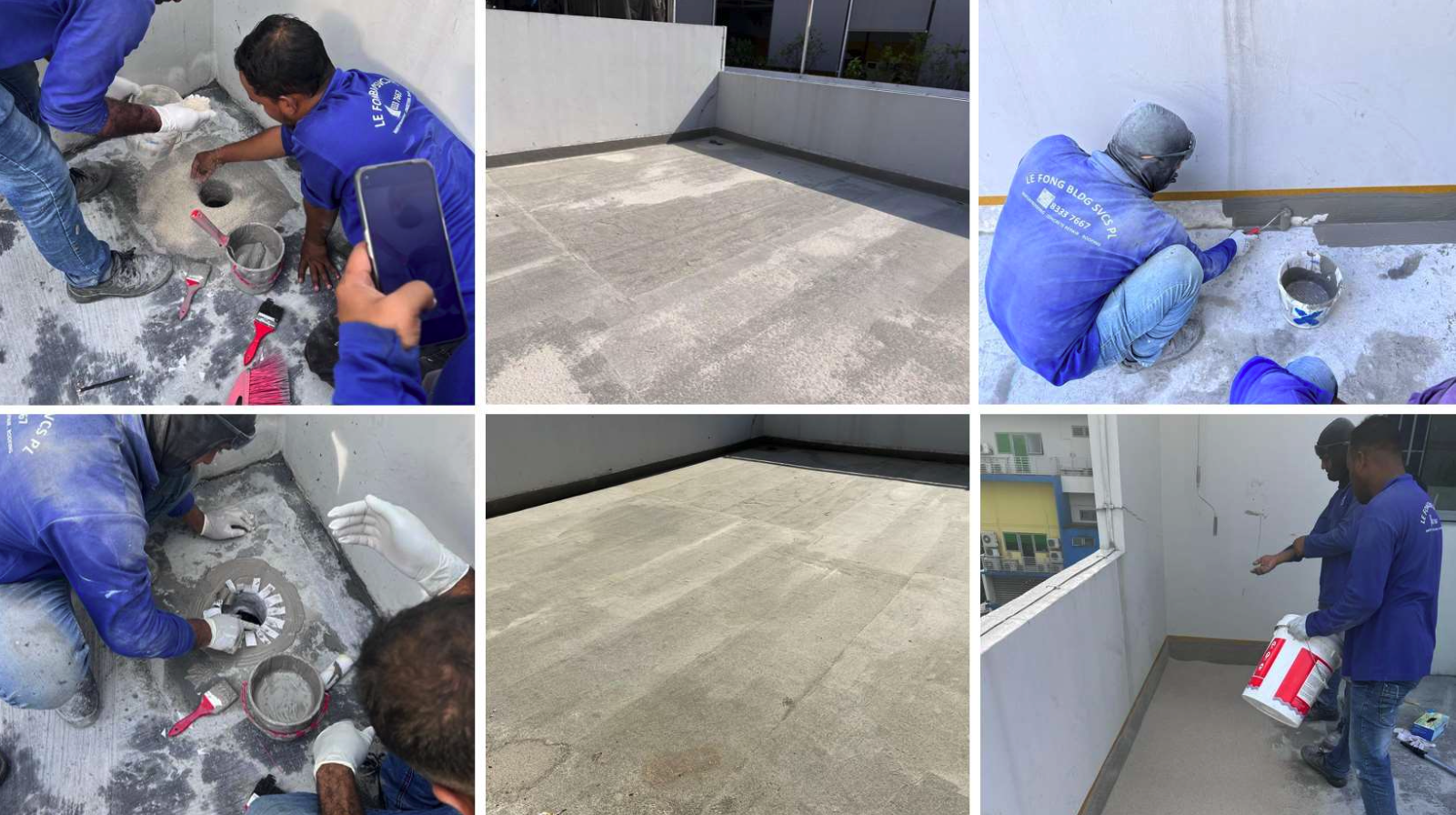

The installation process began with applying the Triflex SmartTec system, enhanced with quartz sand, which demonstrated excellent mechanical adhesion properties. Special attention was given to intricate details, such as turn-up walls, ensuring comprehensive coverage and long-lasting protection. An additional layer of Triflex SmartTec was applied to broadcast quartz sand, providing a robust base for the subsequent screen layer and tiling.

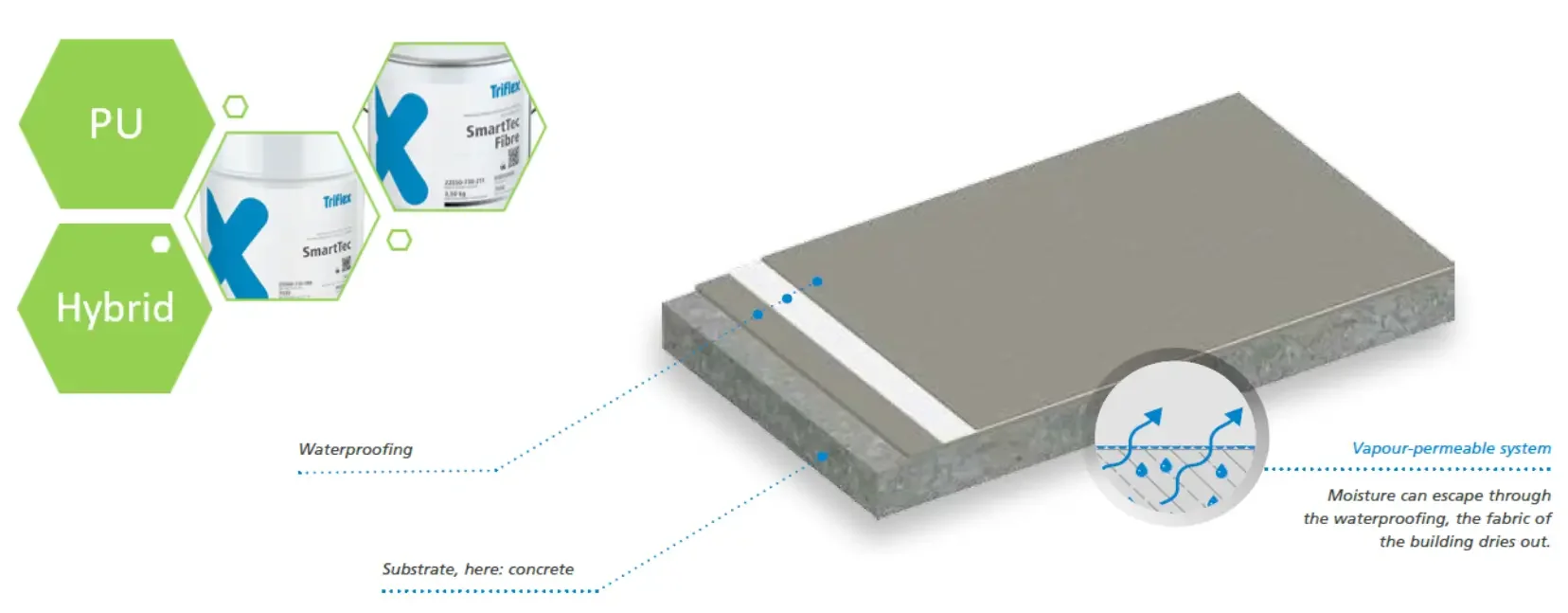

System Description
Properties
Isocyanate-free
EMICODE® EC1PLUS quality seal
Universally applicable
Vapour-permeable (Sd value = approx. 2.0 m)
General Building Supervisory Authority Test Certificate (abP) for liquid-applied waterproofing of building structures set out in PG-FLK as per W TB No. C 3.28
Fire classification as per DIN EN 13501-1: Class E
General Building Supervisory Authority Test Certificate (AbP) for liquid-applied waterproofing in conjunction with tiles and paving (AIV-F) for use as waterproofing of building structures in interior and exterior areas as per W TB, No. C 3.27
Full-surface, reinforced waterproofing system with a single-component polyurethane base
Seamless
Cold-applied
Immediately fully functional
Flexible in low temperatures
Excellent adhesion properties on a multitude of substrates Can be used in substrate temperatures of +5°C and above
Extremely weather-resistant (UV, IR, etc.)
Elastic and crack-bridging
Can be applied mechanically
Solvent-free
Results
The installation of the Triflex SmartTec system successfully addressed all the waterproofing challenges presented by the 16 Entreprise Terrace Roof. The roof is now fully protected against moisture ingress, even under the demanding conditions of Singapore’s rainy season. This project stands as a testament to Triflex’s commitment to delivering high-quality, reliable, and long-lasting waterproofing solutions.
