Triflex ProTect for mall roof, Singapore
Key Facts
Location: Singapore
System: Triflex ProTect
Completion: November 2021
Area: 180 m²
Authorised Contractor: Hydroseal Pte Ltd
Waterproofing Solution for The Heeren Metal Roof in Singapore
In November 2021, Triflex Singapore was called upon to resolve a persistent waterproofing issue at The Heeren, a prominent building in Singapore. The 2 aluminium composite roof of the building exhibited severe leakage problems, particularly affecting the tenants’ apartments below. Despite previous attempts using silicone patches, the issues persisted due to design flaws in the roof joints and underslope.
The Challenge
The aluminium composite roof at The Heeren had developed defects at the joints, causing water leakage into the tenant's living spaces. A previous silicone patch solution had failed to resolve the problem. The under-slope design flaw of the roof allowed water to pass through the joints, making the issue more complicated. Moisture had also penetrated the roof, increasing the complexity of the repairs. Before beginning the project, an adhesion test and ventilation of the system were necessary to ensure the right solution was applied.
The Solution
In collaboration with Hydroseal Pte Ltd, an authorized contractor, Triflex conducted an on-site survey to determine the best approach for the waterproofing solution. The chosen system was Triflex ProTect, known for its fast-curing properties and superior crack-bridging capabilities, especially suitable for metal roofs with expansion concerns. Additionally, Triflex Metal Primer and Triflex ProDetail were employed to waterproof the intricate areas, such as gutters and wall connections, ensuring a complete seal against water ingress.

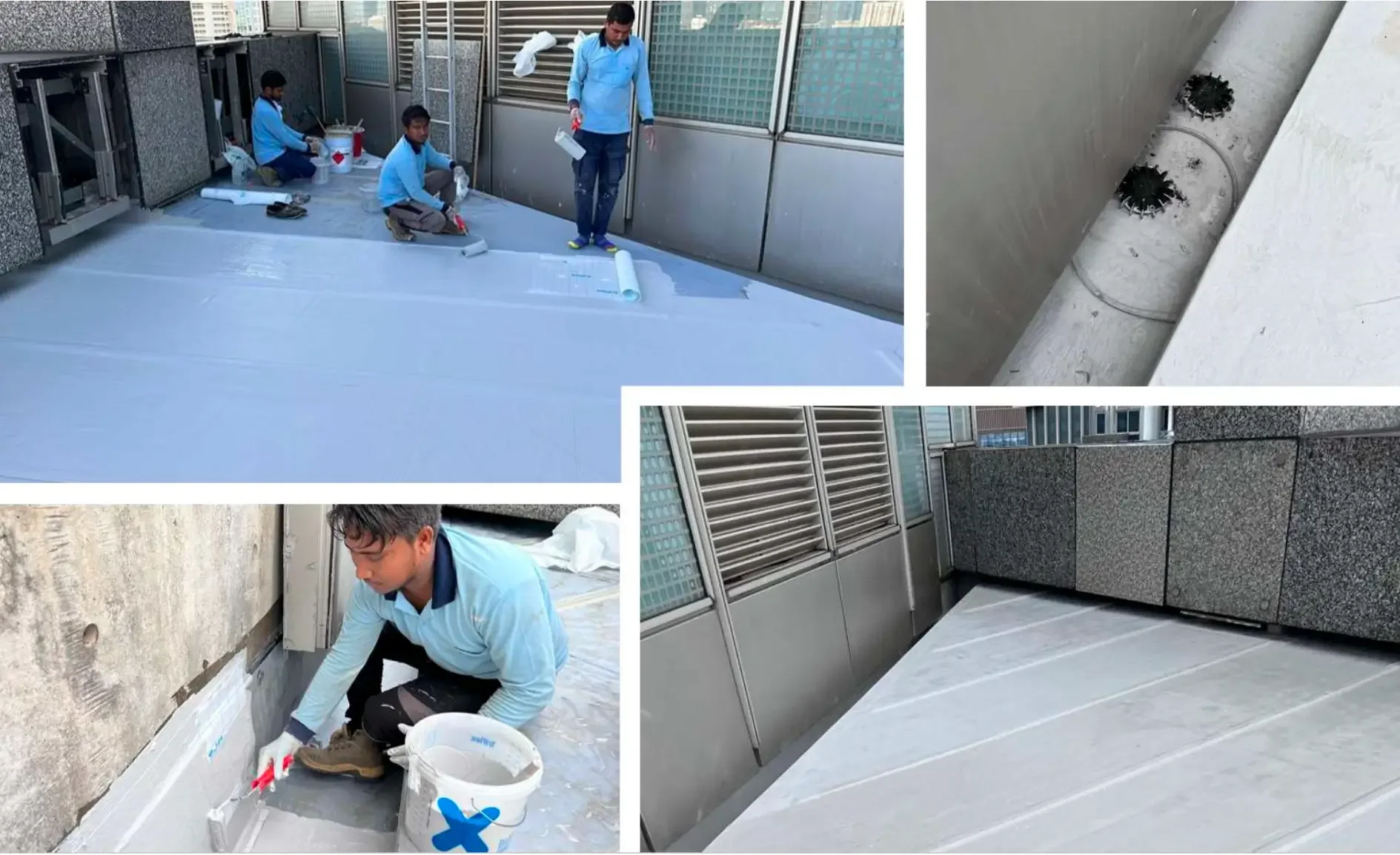

The application of the Triflex ProTect system was carried out meticulously, covering the entire aluminium composite roof. Special attention was given to areas that had been prone to leaks, particularly at the roof joints. The fast-curing nature of the Triflex system allowed the project to be completed efficiently, minimizing downtime for the building's tenants. The combination of Triflex ProTect and ProDetail systems provided a long-lasting and flexible solution capable of withstanding metal roof expansions and contractions.

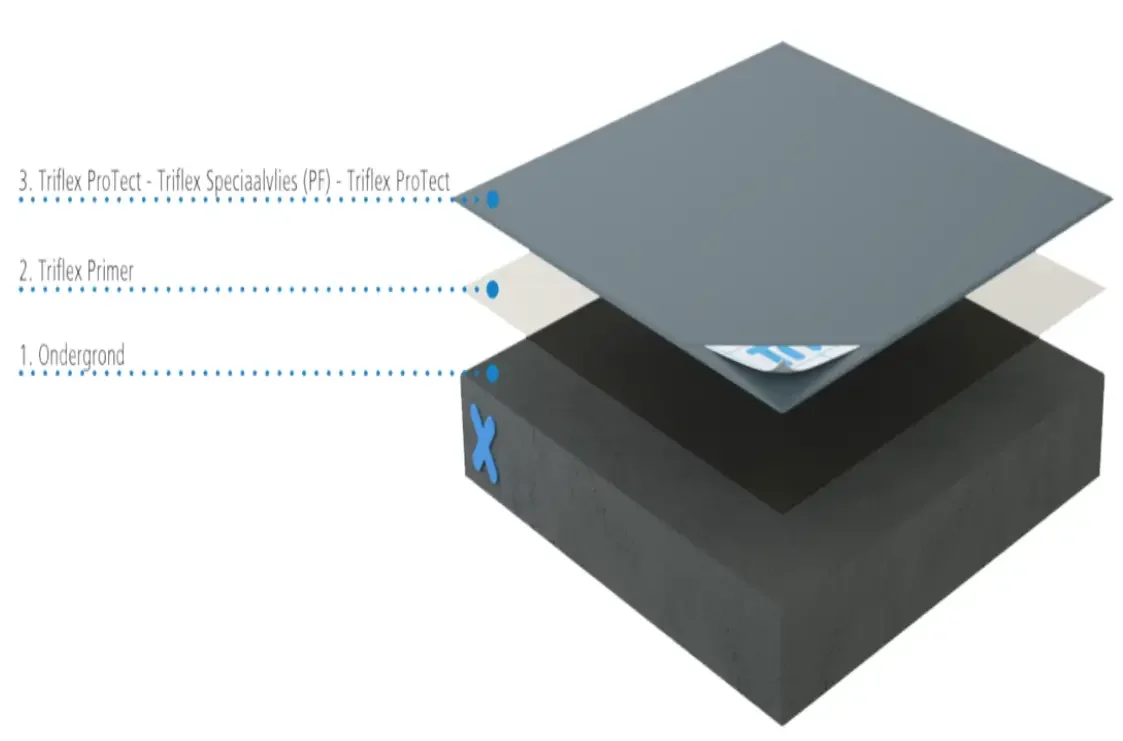

System Overview
Fully reinforced waterproofing system with a polymethyl methacrylate (PMMA) base
Hydrolysis-resistant
Seamless
Cold-applied
Fast-curing
Flexible in low temperatures
Excellent adhesion properties on a multitude of substrates
Root-resistant in line with FLL
Can be used at substrate temperatures of down to 0°C
Extremely weather-resistant (UV, IR, etc.)
Suitable for normal pedestrian traffic
Elastic and crack-bridging
Vapour-permeable
Resistant to chemicals present in air and rainwater
Resistant to external fire exposure to DIN 4102 / DIN EN 13501
Hard roofing in accordance with the German regional building regulations
European Technical Approval with CE mark in the highest usage categories (W3, M and 5, P1 to P4, 51 to 54, TL4, TH4)
Complies with DIN 18531 (2010 version)
Approved to DIN 18195 Parts 4 to 7
System Overview
Totally cold applied, with no risks from hot works
Suitable for all common roof details and repairs
Compatible with virtually all roof substrates
Exceptionally rapid curing / rainproof times, even at low temperatures
Fully reinforced waterproofing technology
Designed to allow use on vertical surfaces
Simple, single process waterproofing application
Seamless - with no joints, seams or fixings
Results
The installation of the Triflex ProTect system effectively resolved the leakage issues at The Heeren. The roof is now fully protected against water penetration, ensuring the comfort and safety of the tenants below. This case demonstrates Triflex’s expertise in delivering robust waterproofing solutions that address complex roofing challenges, especially on metal surfaces.
