Triflex ProDetail for metal roof in Bangkok
Key Facts
Location: Bangkok
System: Triflex ProDetail
Completion: 2021
Area: 30 m²
Authorized Contractor: MCWELL
Waterproofing Solution for The Ratchapat Udon Thani, Bangkok
In 2021, Triflex, in collaboration with its authorized contractor Mcwell, was approached to address leaking issues at the hip flashing of a metal roof on the Ratchapat factory building in Udon Thani, Thailand. With a history of providing successful waterproofing solutions for metal roofs across Asia, Triflex was tasked with delivering a long-term, effective system to tackle the challenges posed by the roof's structure and environmental conditions.
The Challenge
The leaking occurred at the interfacing between the hip flashing and the metal roof, worsened by the slope of the roof and the orientation of the metal panels, which increased water ingress. Previous attempts using standard sealant had failed within months due to the expansion and contraction of the metal roof under varying temperatures. The client required a solution that could withstand the roof’s dynamic movement and provide reliable waterproofing even under extreme conditions.
The Solution

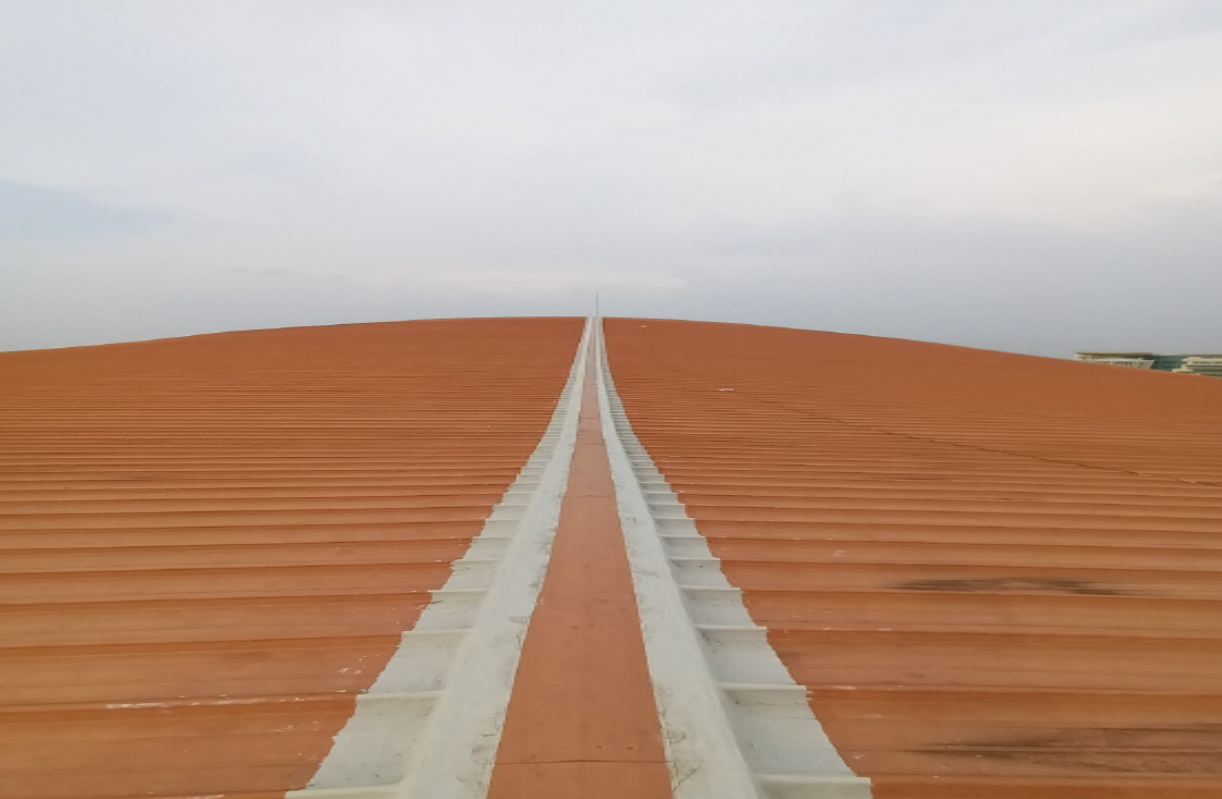

Triflex, alongside Mcwell, conducted on-site testing to identify the best waterproofing approach. Triflex ProDetail was selected as the ideal solution due to its crack-bridging capabilities and its ability to perform effectively in temperatures up to 45°C. The system was applied to seal the interface between the metal roof and the hip flashing, ensuring a seamless and durable waterproof barrier that could accommodate the roof’s expansion and contraction.
The application process involved careful surface preparation, followed by the precise application of Triflex ProDetail. The liquid-applied system, with its flexible and reinforced properties, allowed for a perfect fit around the intricate details of the roof's structure. The quick-curing nature of the material ensured minimal disruption to the building's operations, while providing a robust, long-lasting solution.
System Overview
Totally cold applied, with no risks from hot works
Suitable for all common roof details and repairs
Compatible with virtually all roof substrates
Exceptionally rapid curing / rainproof times, even at low temperatures
Fully reinforced waterproofing technology
Designed to allow use on vertical surfaces
Simple, single process waterproofing application
Seamless - with no joints, seams or fixings
Results
The Triflex ProDetail system successfully eliminated the leaks, providing the factory with a secure, watertight metal roof. The solution not only addressed the immediate issues but also ensured long-term durability, even under the demanding conditions of Thailand's climate. The client expressed satisfaction with the outcome, citing the system’s performance and reliability as key highlights.
About Triflex
Triflex is the leading In Asia specialist in liquid waterproofing solutions PMMA. Our high-quality systems provide reliable and lasting waterproofing for roofs, balconies, and parking decks. We are a family owned and operated company that provides individual solutions worldwide. From our production facilities based in Minden, Germany, we have been researching and developing solutions designed to protect and repair our clients' structures for more than 40 years.
In ASIA we pride ourselves on providing our clients with tailored solutions and exceptional levels of service & support throughout all stages of their project. From conducting in-depth site surveys, to our comprehensive testing and off-site and on- site support we ensure your project is completed on time and to the highest standards. All Triflex solutions are certified to the relevant UK & European standards and are accompanied with long term warranties to provide peace of mind.
For more information about our products and services contact us today!
