Triflex JWS for temple renovation
Key Facts
Location: Bangkok
System: Triflex JWS
Completion: October - December 2024
Area: 123 m
Waterproofing Expansion Joint for Wat Dhammamongkol Temple, Bangkok
Wat Dhammamongkol Temple, an architectural and spiritual landmark, faced persistent leakage problems in the expansion joints between its buildings. Over the years, these structures, built at different times, experienced deteriorated joints that had not been properly addressed. Repeated water intrusion during heavy rains disrupted the serene environment and required immediate and reliable action.
The Challenge
The temple authorities sought a solution that would not only solve the problem but also preserve the sanctity and functionality of this cherished site.
The Solution
Triflex, in collaboration with its trusted partner, approached the project with a methodical plan:
Site Inspection and Analysis:
A thorough assessment was conducted to identify the underlying causes of the leaks and the extent of damage.Tailored Recommendation:
Triflex JWS Version 2, a cutting-edge expansion joint waterproofing system, was proposed. This solution, known for its flexibility, durability, and ability to handle structural movement, was perfectly suited for the 123-meter-long joints in the temple.Execution:

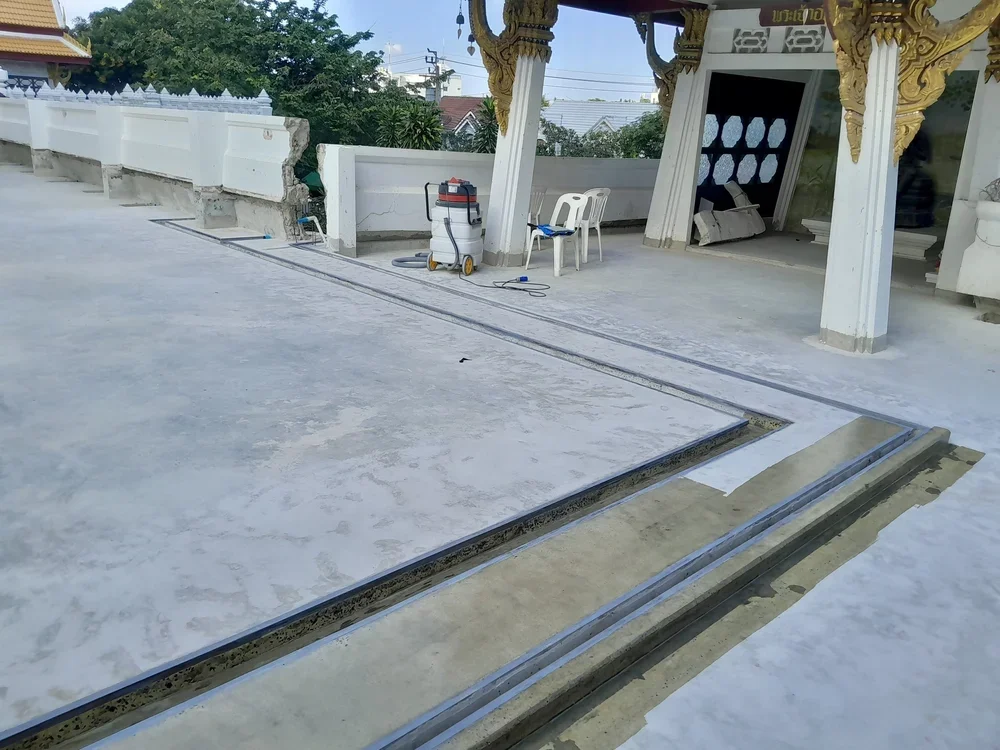

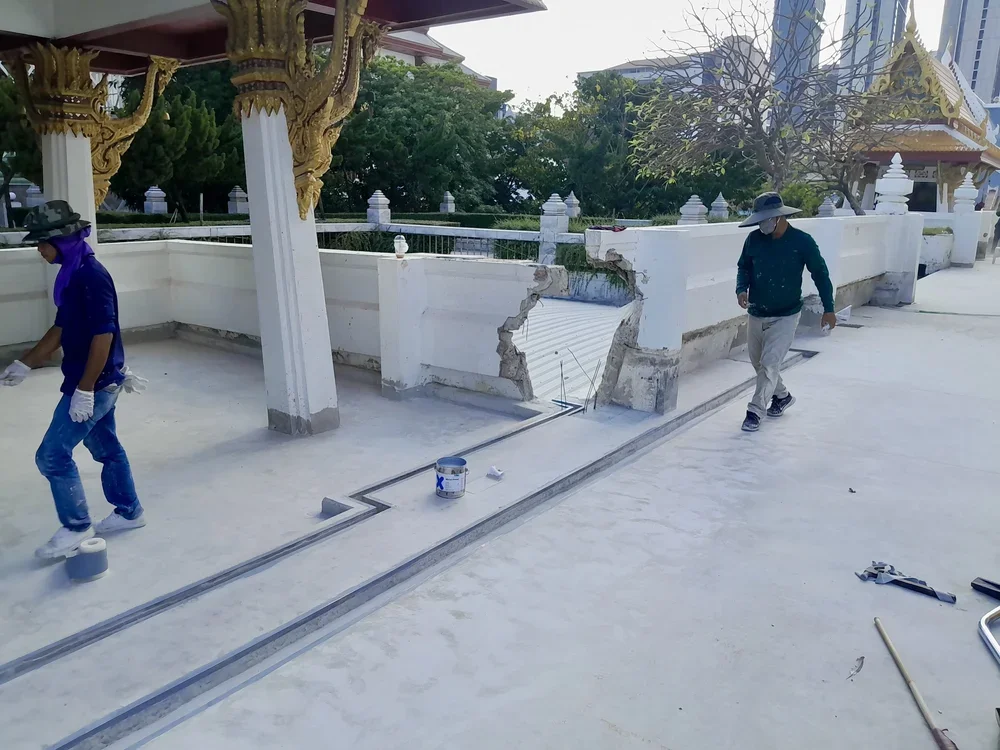

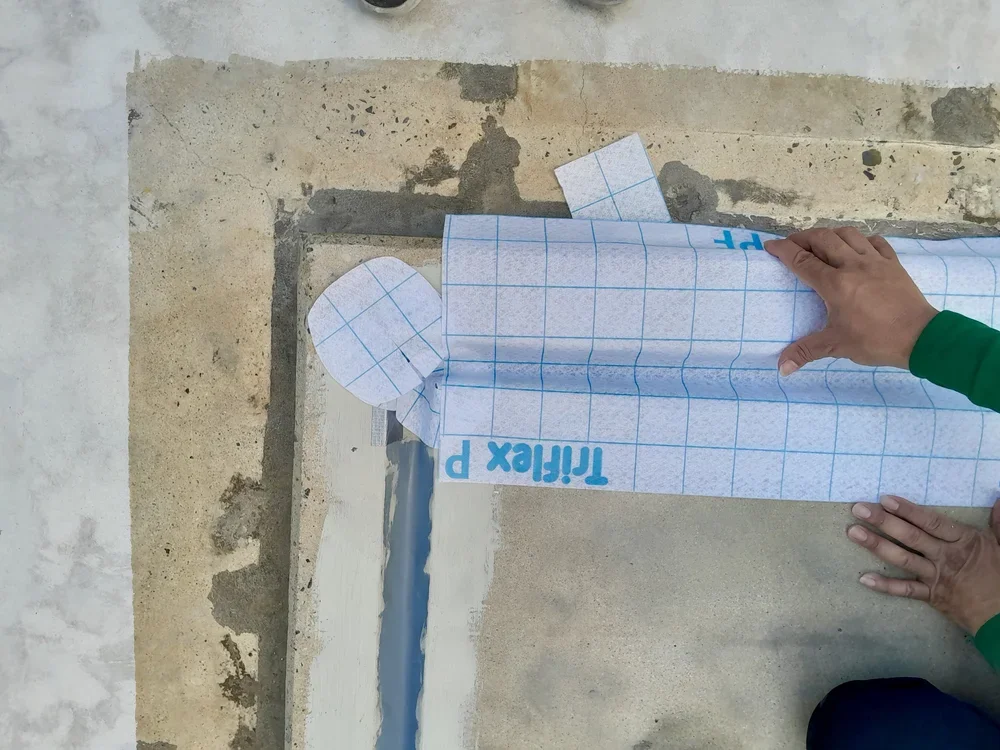

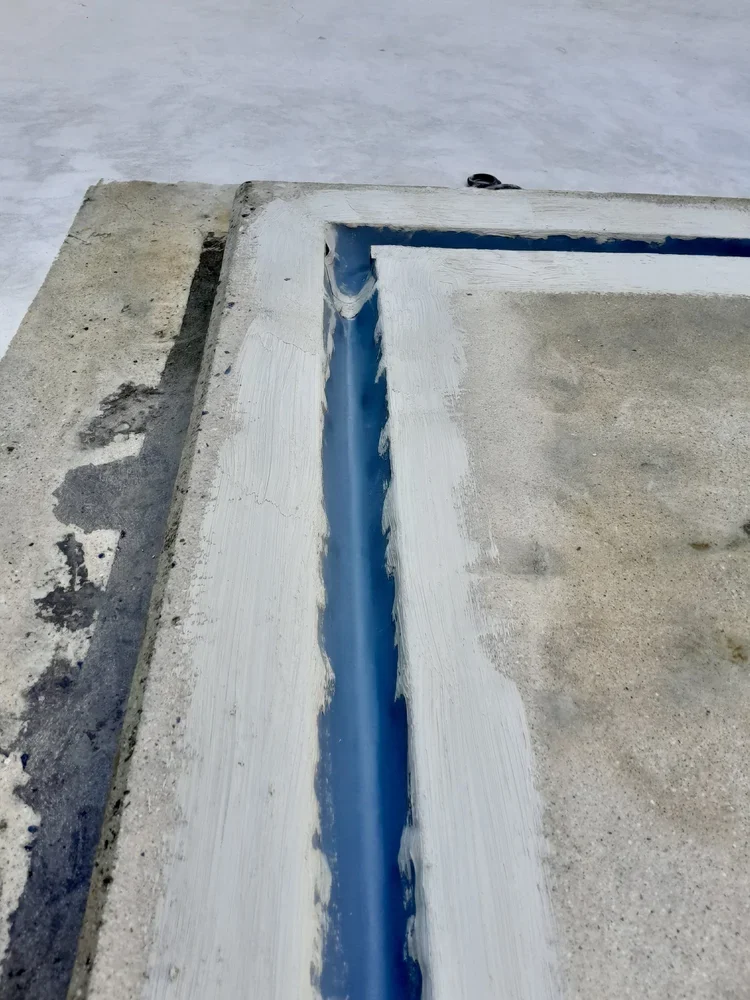

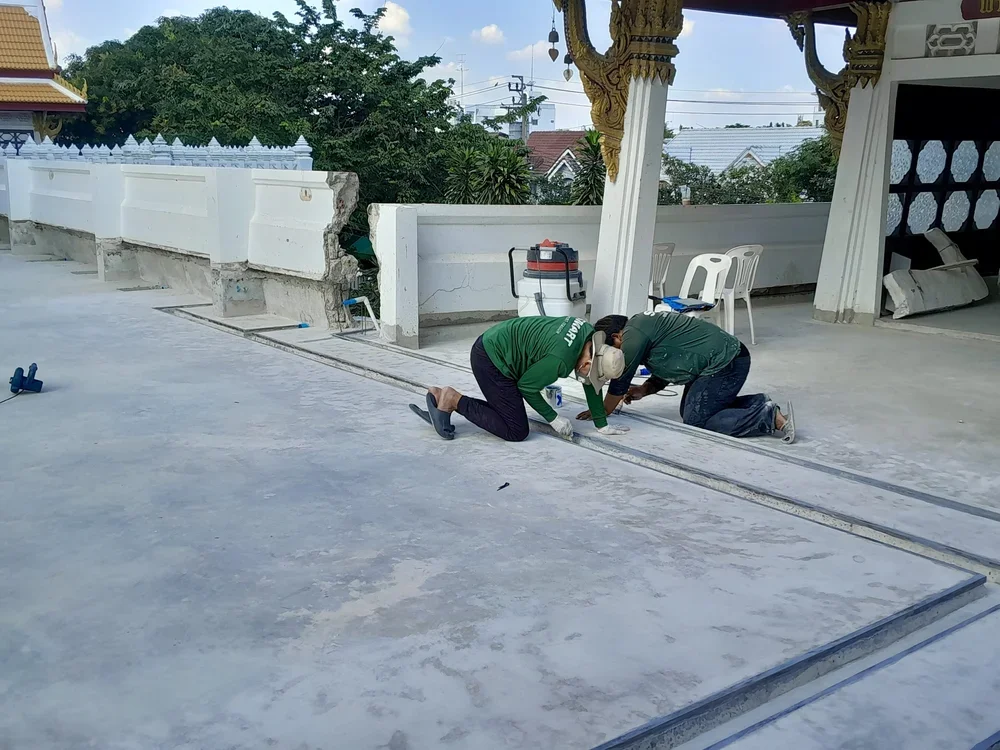

The application of Triflex JWS Version 2 began in October 2024. The system’s advanced properties allowed it to seamlessly integrate with the temple’s existing structures, ensuring watertight joints and restoring functionality.
Triflex JWS, version 2
System Properties

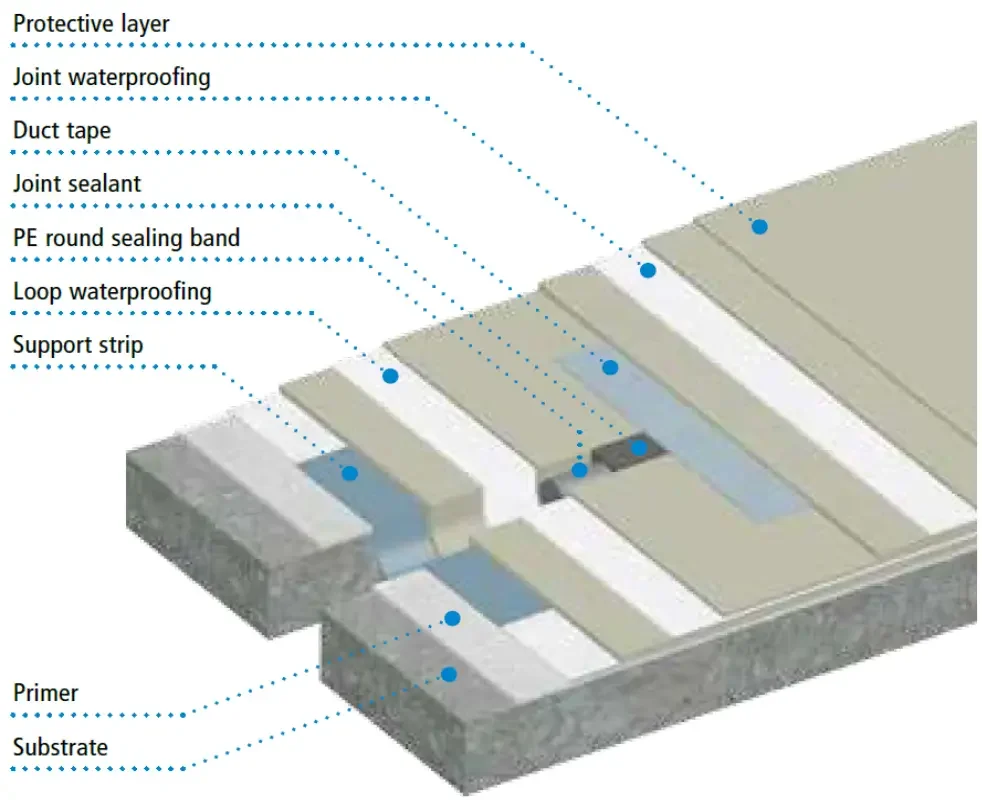

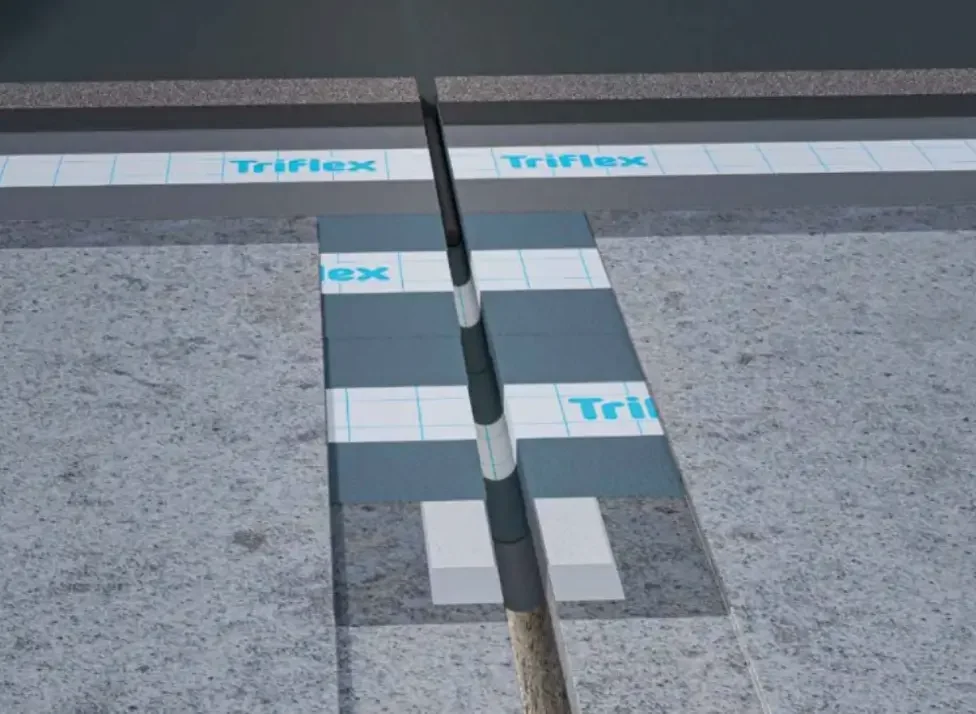

Fully reinforced waterproofing system with a polymethyl methacrylate (PMMA) base for waterproofing construction, controlled crack, expansion and settlement joints on waterproof-concrete components.
Hydrolysis-resistant
Seamless
Cold-applied
Fast-curing
Flexible in low temperatures
Excellent adhesion properties on a multitude of substrates
Root and rhizome-resistant in accordance with FLL specifications
Extremely weather-resistant (UV, IR, etc.)
Elastomeric and crack-bridging
Joint waterproofing on the side facing the water
Vapour-permeable
Resistant to all chemicals naturally present in soil and rainwater
Resistant to sparks and radiant heat (DIN 4102)
ETA certification with CE marking
General Building Supervisory Authority Test Certificate (AbP) in accordance with the Building Regulations List A, Part 2, No. 1.4 - Normally flammable joint waterproofing for concrete components with high water-penetration resistance against pressurised and non-pressurised water and against ground moisture. The tests are based on the testing principles for joint waterproofing (PG-ÜBB): The junctions of structural waterproofing on concrete components with high penetration resistance and in accordance with the specifications in the working group Building Regulations List A, Part 2, No. 1.4 on the assessment of settlement joints.
The waterproofing system is suitable for use in water-exchange zones in usage class A, load classes 1 and 2 in accordance with the German Directive on Watertight Concrete Structures (WU Directive).
Results
Even before the project was fully completed, the results spoke volumes. In areas where the Triflex JWS Version 2 system had been applied, water leakage was completely eliminated, as confirmed by testing during real rain events.
The temple management expressed their satisfaction, highlighting how the solution not only resolved the long-standing issue but also provided peace of mind for the future.
Why Triflex JWS Version 2?
High Flexibility: Designed to accommodate movement between structures, ensuring long-term durability.
Superior Waterproofing: Guaranteed protection against water ingress, even in the harshest weather conditions.
Proven Performance: Tested and validated during real-world rain scenarios.
